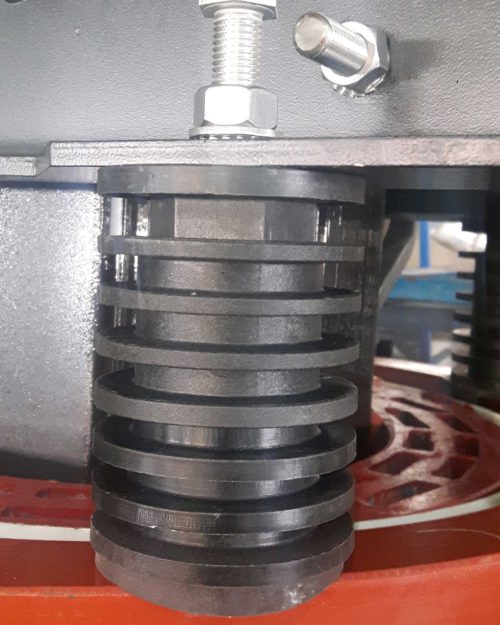

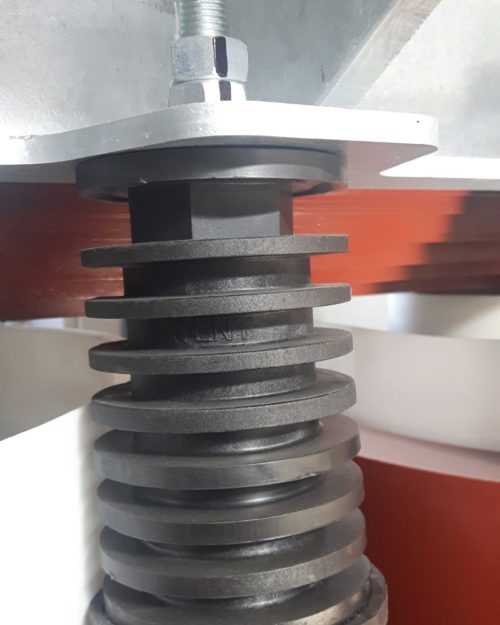

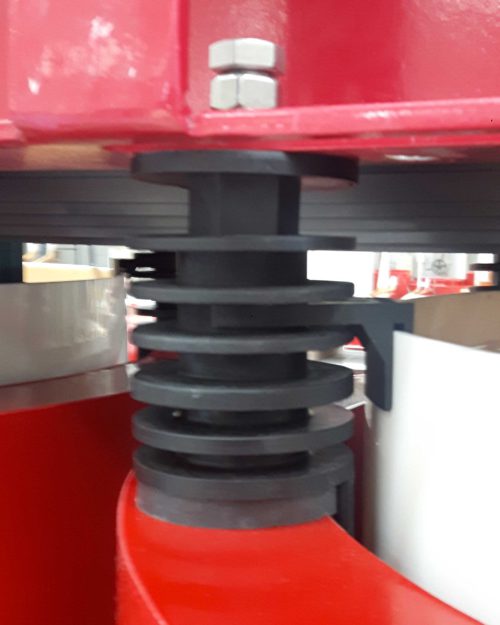

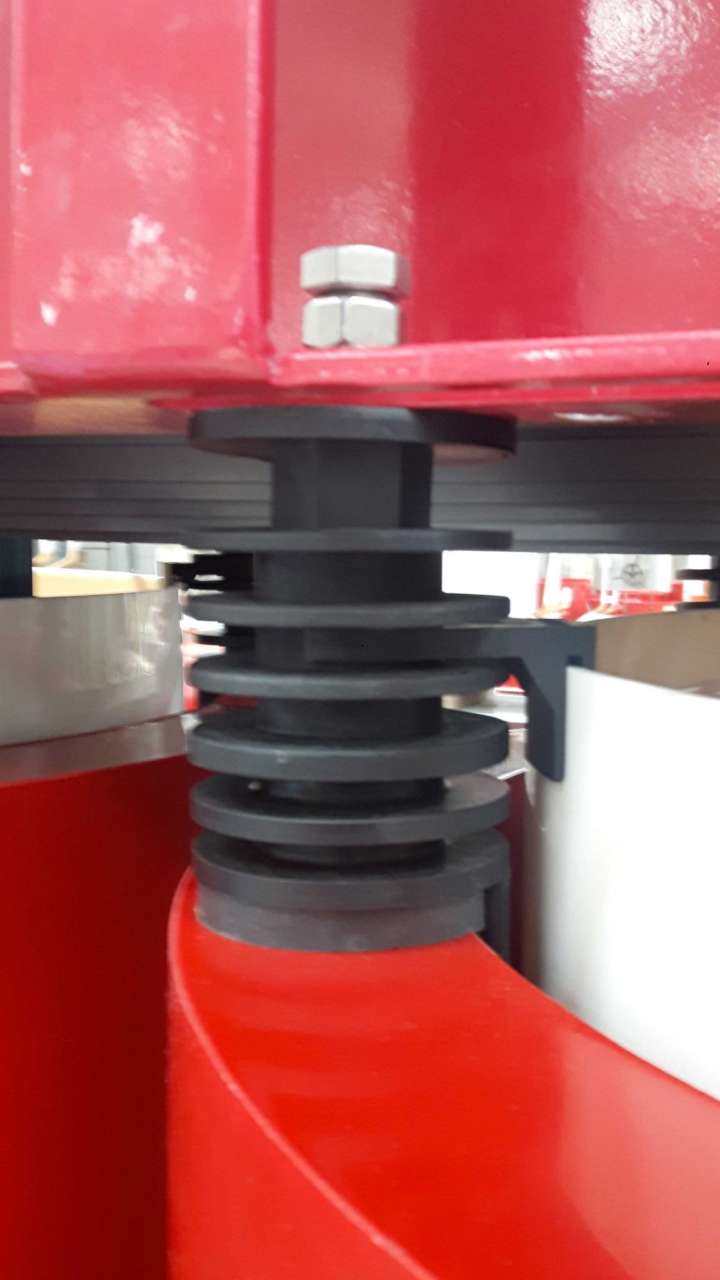

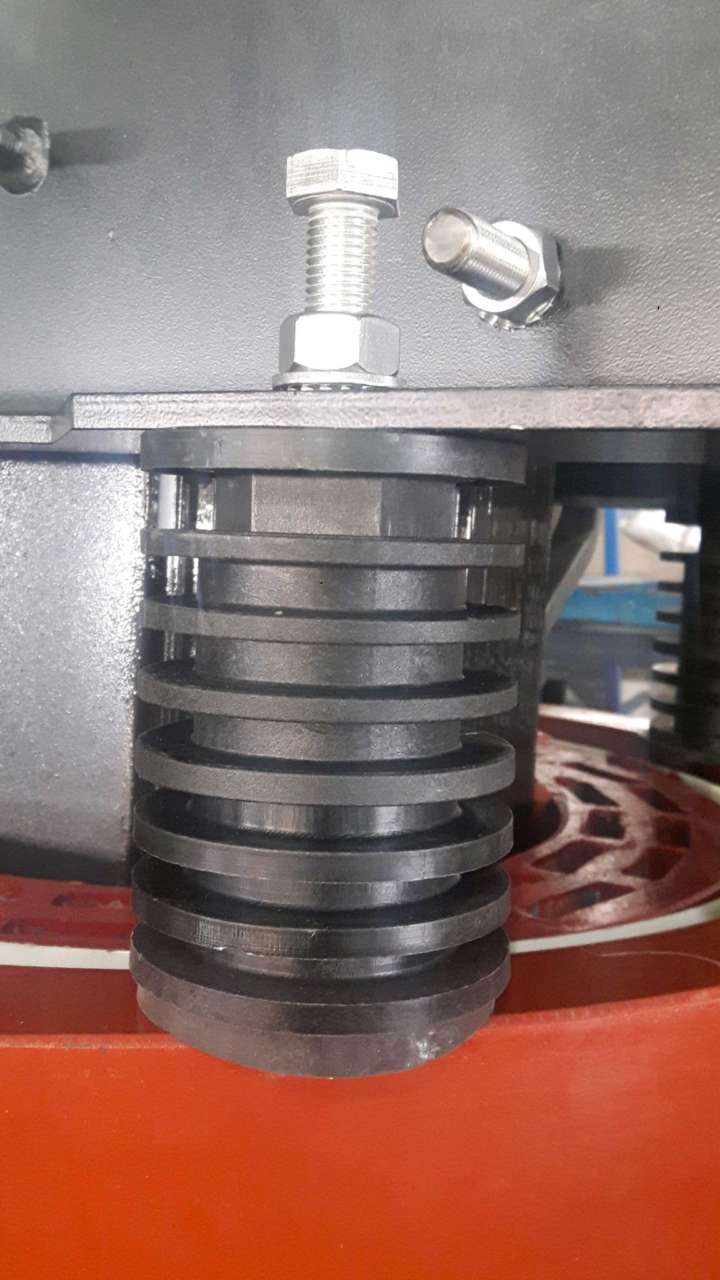

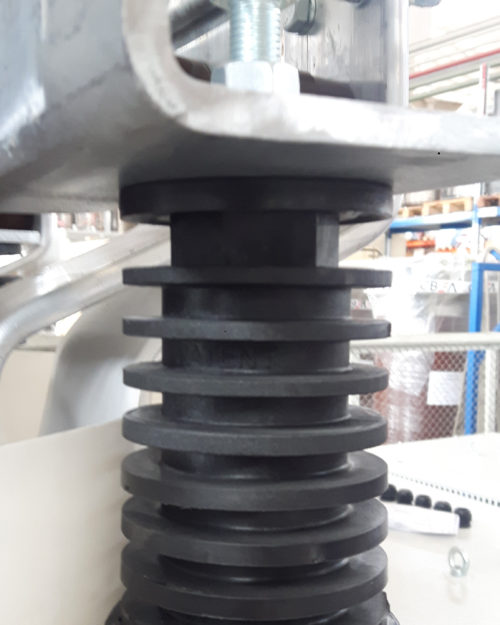

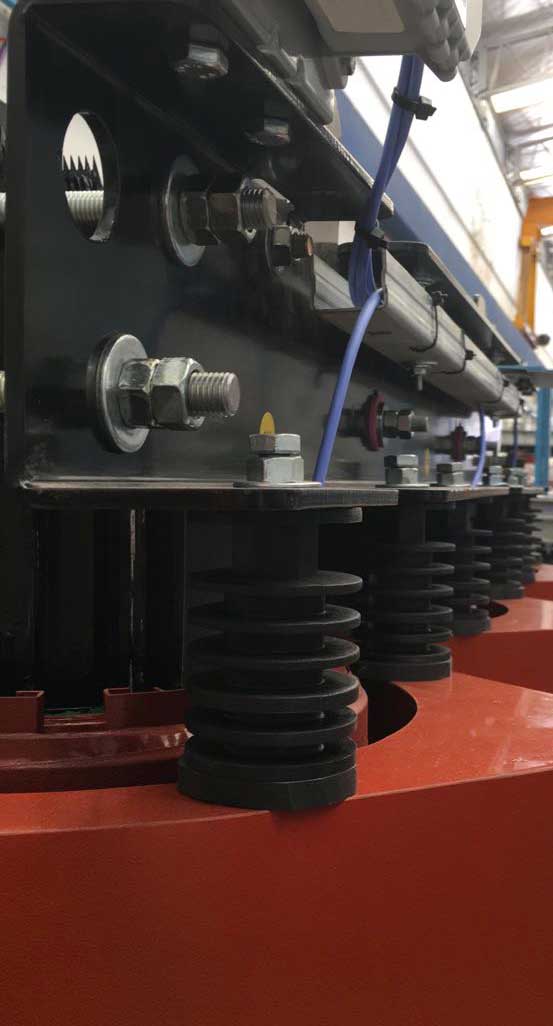

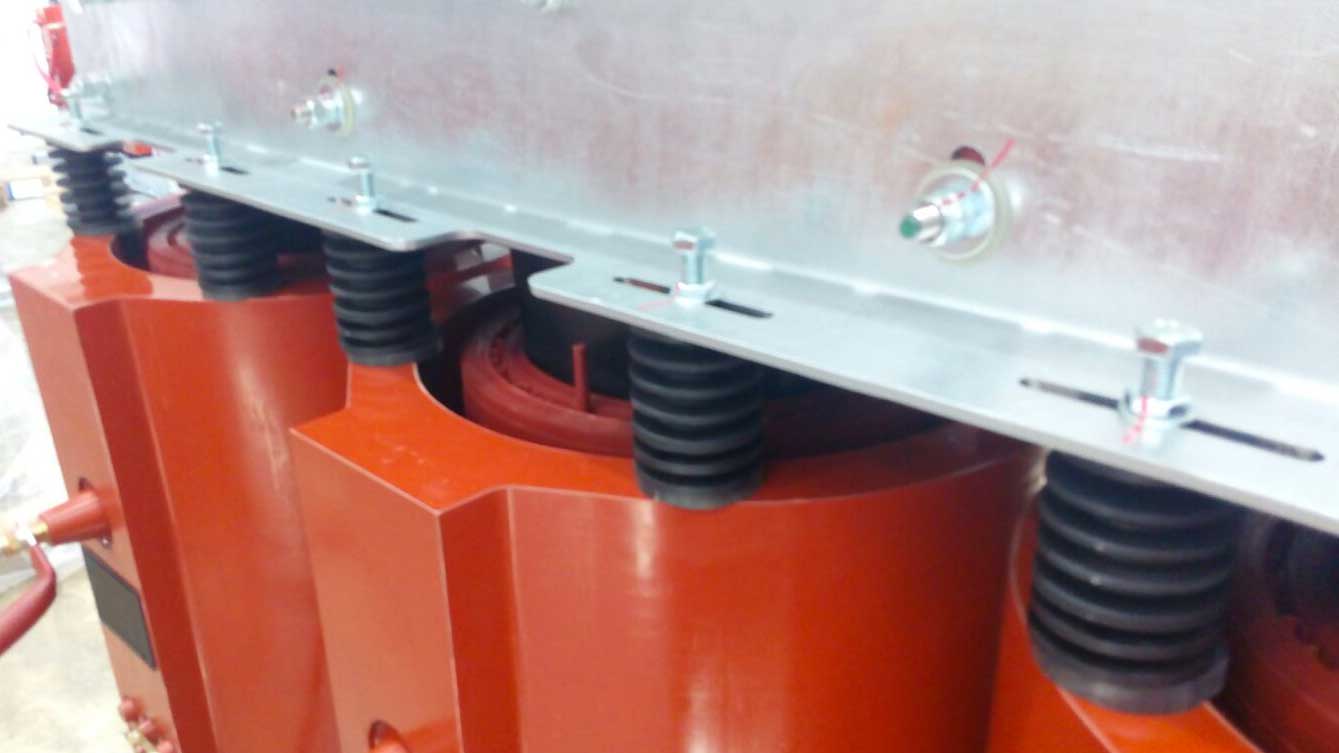

New fixing block for resin transformers.

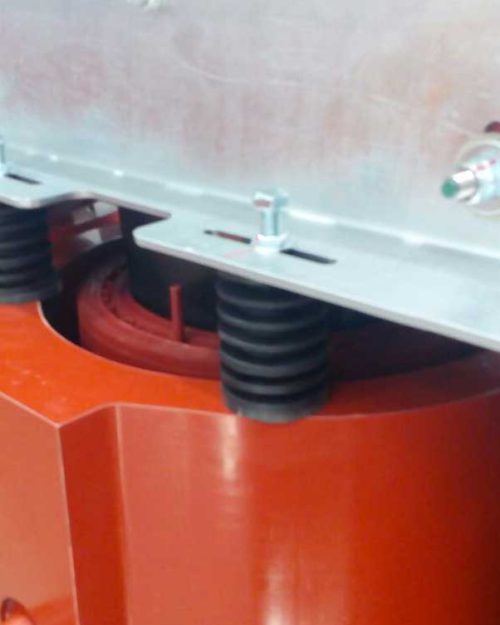

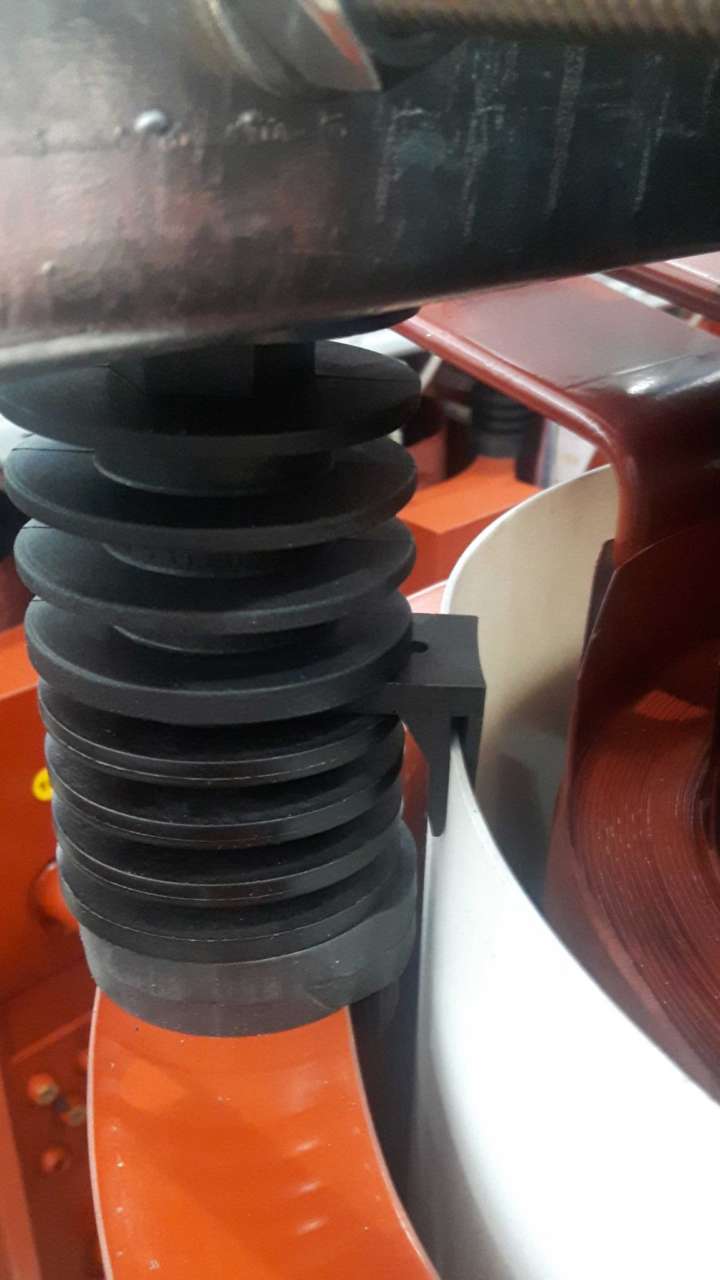

The system allows to coil block  leaving the air cooling between the core and the same completely free.

The advantage of the new block is a greater ventilation with a thermal reduction of the transformer that turns into a saving of materials for the coil preparation.

Extreme modularity guaranteed by the accessories available for each series.

Another advantage not to be underestimated and the assembly speed as you can see in the video.

Calculation program for resin transformers

Further information is available in the CATALOG.

Series 50

Block complete with accessories diameter 50

– Fixed support
– Spacer
– Centering
– Barrier support
– Silicone rubber

Series 65

Block with accessories diameter 65

– Fixed support
– Spacer
– Centering
– Barrier support
– Silicone rubber

Series 85

Block complete with accessories diameter 85

– Fixed support
– Spacer
– Centering
– Barrier support
– Silicone rubber

Series transformers

Fixing Block:

  • SERIES 50
  • SERIES 65
  • SERIES 85

Spacer:

  • SERIES 50
  • SERIES 65
  • SERIES 85

Centering:

  • SERIES 50
  • SERIES 65
  • SERIES 85

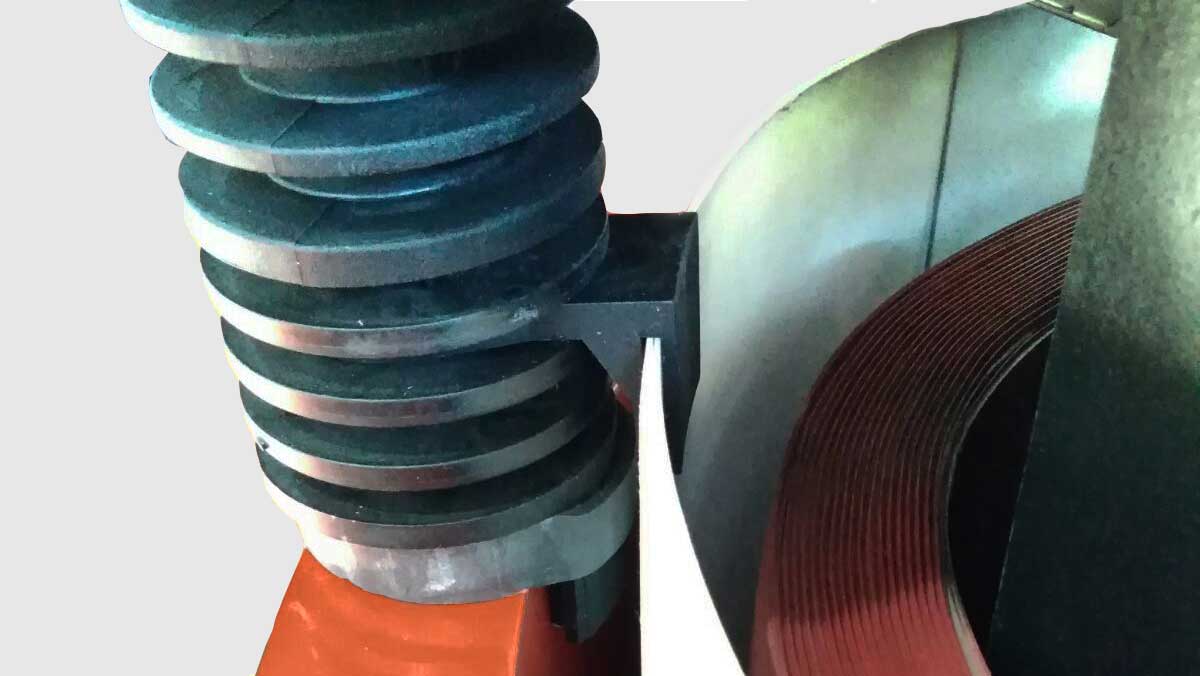

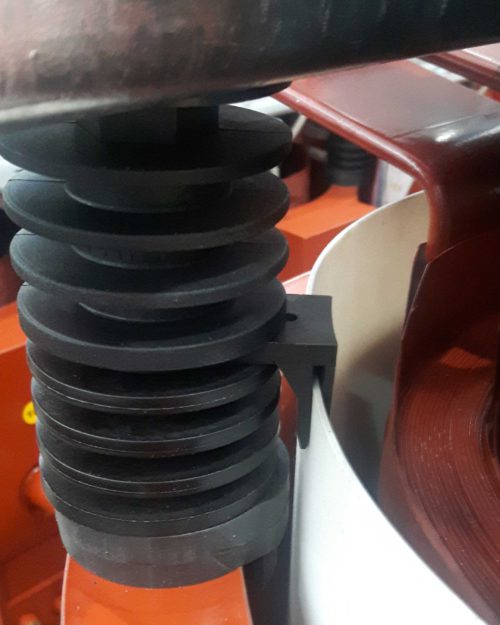

Fork:

  • SERIES 50
  • SERIES 65
  • SERIES 85

Rubber:

  • D 54
  • D 69
  • D 89

Spacers between disk:

  • SBD 004
  • SBD 006
  • SBD 008
  • SBD 010
  • SBD 015
